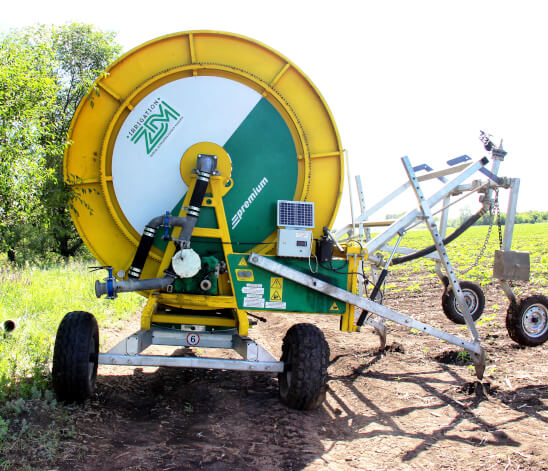

Reel-Type Irrigation Machine DM 500/110 with Long-Range Sprinkler

on request ₽

At your choice, the ZDM reel-type irrigation machine is equipped with a long-range sprinkler (gun irrigation, sprinkler irrigation).
-Long-range sprinkler irrigation is used for growing tall-stem crops (corn, sunflower, grains). The sprinkler radius ranges from 20 to 50 m and depends on the sprinkler settings and system pressure (from 8 atm).

In stock
Limited offer quantity

We will prepare a free layout for your field with all necessary calculations. The individual offer will include:
1. A model of the reel-type irrigation machine paired with a long-range sprinkler or boom, suitable for the crop and field size.
2. Pumping station.
3. The required number of hydrants, pipelines, adapters, tees, plugs, and other components of the irrigation system.

TECHNICAL SPECIFICATIONS
PET length	500 m
PET diameter	110 mm
Working pressure at machine inlet with sprinkler	8 atm
Irrigation area from one position	5 ha
Sprinkler tripod movement speed	6–150 m/h
Sprinkler irrigation strip width	80–100 m
Sprinkler nozzle set diameters (5 pcs)	22–30 (step 2 mm)
Transport speed	no more than 6 km/h
Operating personnel	1 person
Required power of the servicing tractor	80 hp
Number of chassis axles	1
Estimated load per one irrigation machine	30 ha
Ground clearance	320 mm
Machine structural weight	4 380 kg
Dimensions in transport position:
– length	7 280 mm
– width	2 450 mm
– height	3 700 mm
Track width adjustment range of the tripod	1.3–2.1 m
Trolley wheel track	1.8–2.3 m
