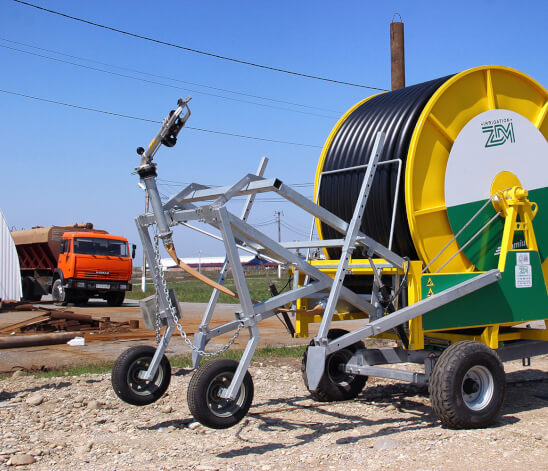

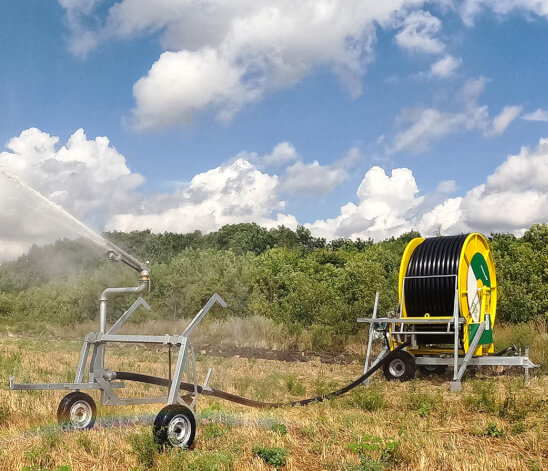

Reel-Type Irrigation Machine DM 300/110 with Long-Range Sprinkler

on request ₽

In stock
Limited offer quantity

The powerful drum structure of ZDM allows avoiding high mechanical stress on the PET, which directly affects its durability. ZDM drum-type irrigation machine is reliable!

TECHNICAL SPECIFICATIONS
PET length	300 m
PET diameter	110 mm
Operating pressure at the machine inlet with sprinkler	8 atm
Irrigation area from one position	3.0 ha
Sprinkler tripod movement speed	6–150 m/h
Sprinkler irrigation strip width	80–100 m
Sprinkler nozzle set diameters (5 pcs)	22–30 (step 2 mm)
Transport speed	no more than 6 km/h
Operating personnel	1 person
Required power of servicing tractor	80 hp
Number of chassis axles	1
Estimated load per irrigation machine	25 ha
Ground clearance	320 mm
Machine structural weight	3 630 kg
Overall dimensions in transport position:
– length	7 280 mm
– width	2 450 mm
– height	3 100 mm
Track width adjustment range of the tripod	1.3–2.1 m
Trolley wheel track	1.8–2.3 m
