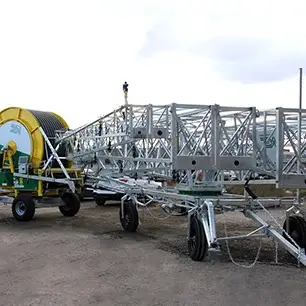

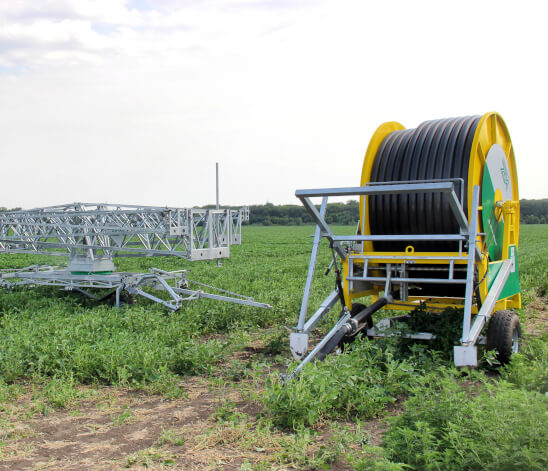

Reel-Type Irrigation Machine ZDM 500/110 with Irrigation Boom

On request

Minor uneven terrain is not a problem. Boom horizontal stabilization is achieved

thanks to the pendulum mechanism in KD 77/98 and KD 63/86 models.

TECHNICAL SPECIFICATIONS
PET length	500 m
PET diameter	110 mm
Operating pressure at the machine inlet with boom	from 4 atm
Operating pressure in the boom	1-2 atm
Water consumption	20-60 m³/h
Irrigation area from one position:
— DM 500/110 and boom KD 77/98	4.9 ha
— DM 500/110 and boom KD 63/86	4.3 ha
— DM 500/110 and boom KD 40/62	3.1 ha
— DM 500/110 and boom KD 30/52	2.6 ha
Boom movement speed (set according to crop irrigation norms)	5–150 m/h
Transport speed of DM with boom	no more than 6 km/h
Operating personnel	1-2 operators
Required power of servicing tractor	80 hp
Number of chassis axles	1
Ground clearance of DM	320 mm
Track width adjustment range of the tripod	1.3–2.1 m
Trolley wheel track	1.8–2.3 m
