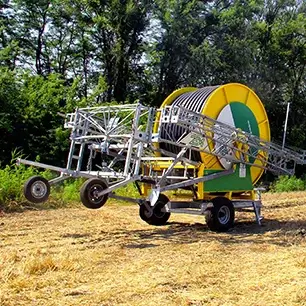

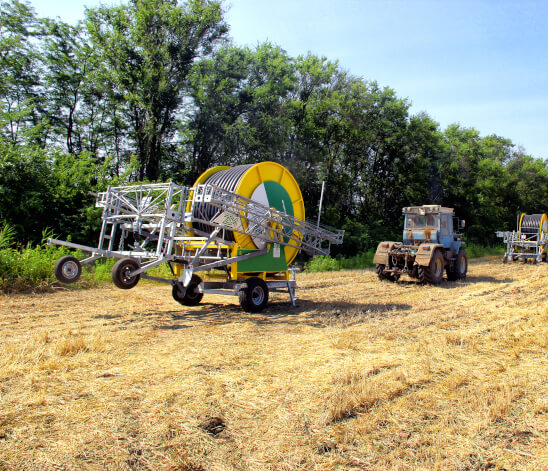

Reel-Type Irrigation Machine 400/110 with Irrigation Boom

On request

In stock
Limited offer quantity

FACING PRESSURE DEFICIENCY PROBLEM?

ZDM booms have the lowest pressure rating on the sprinkler machine market.

HOW LONG DOES IRRIGATION TAKE WITH A SPRINKLER MACHINE?

The performance of the ZDM sprinkler boom depends on the irrigation norms of the cultivated crop. It also determines the movement speed of the boom, which is adjustable by the operator and ranges from 5 to 150 m/h. Water consumption is from 20 to 60 m3/h

TECHNICAL SPECIFICATIONS
PET length	400 m
PET diameter	110 mm
Operating pressure at the machine inlet with boom	from 4 atm
Operating pressure in the boom	1-2 atm
Water consumption	20-60 m³/h
Irrigation area from one position:
— DM 400/110 and boom KD 77/98	3.9 ha
— DM 400/110 and boom KD 63/86	3.4 ha
— DM 400/110 and boom KD 40/62	2.5 ha
— DM 400/110 and boom KD 30/52	2 ha
Boom movement speed (set according to crop irrigation norms)	5–150 m/h
Transport speed of DM with boom	no more than 6 km/h
Operating personnel	2 operators
Required power of servicing tractor	80 hp
Number of chassis axles	1
Ground clearance of DM	320 mm
Track width adjustment range of the tripod	1.3–2.1 m
Trolley wheel track	1.8–2.3 m
