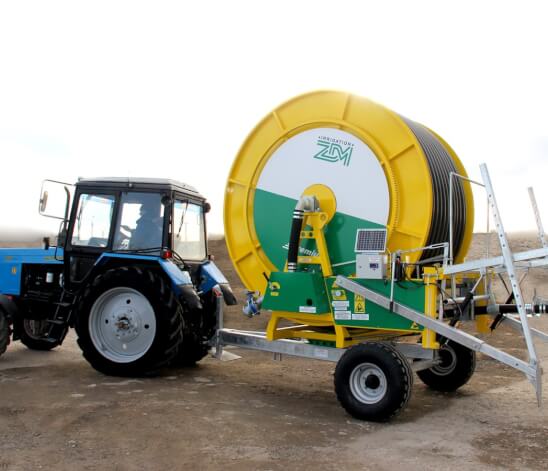

The ZDM reel-type irrigation machine is perfect for irrigating all crop types—both tall and small-seeded. Quick setup and mobility allow irrigation on fields located far apart with minimal labor. Reel systems are ideal for corner plots, areas unreachable by pivot systems, or uneven terrain.
The ZDM team of experienced irrigation, agronomy, and engineering professionals continually improves our equipment and sprinkler booms, adapted for Russia's climate and field shapes. Investing in a ZDM irrigation system ensures over 20 years of reliable performance!

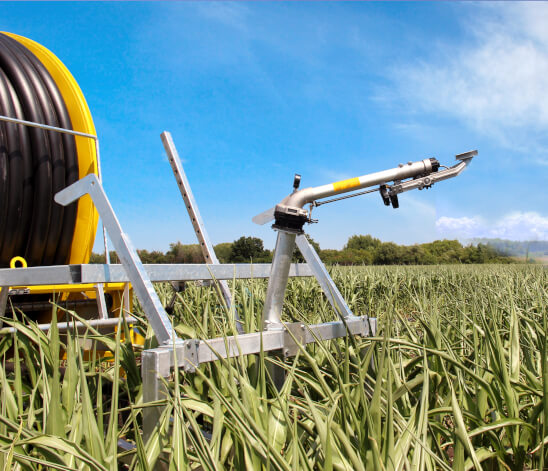

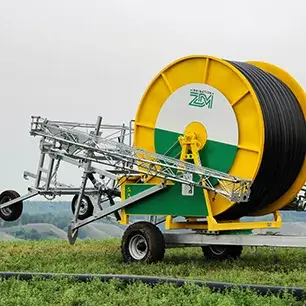

ZDM IRRIGATION MACHINES WITH SPRINKLER

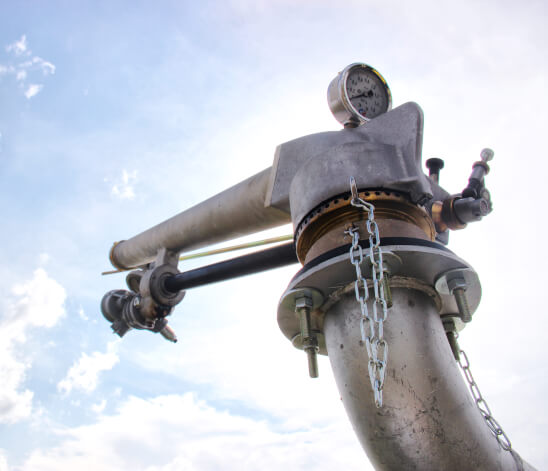

The ZDM reel-type machine can be equipped with a long-range sprinkler or a boom. Sprinkler irrigation is used for tall crops (corn, sunflower, grains). The irrigation radius ranges from 20 to 50 m, depending on the sprinkler settings and pressure (starting from 8 atm).
- For irrigating tall crops
- Guaranteed machine service life: 25+ years
- PE pipe diameter: 110 mm
- Sprinkler movement speed: 6–150 m/h
- Inlet pressure from 8 atm
- Irrigation radius up to 50 m

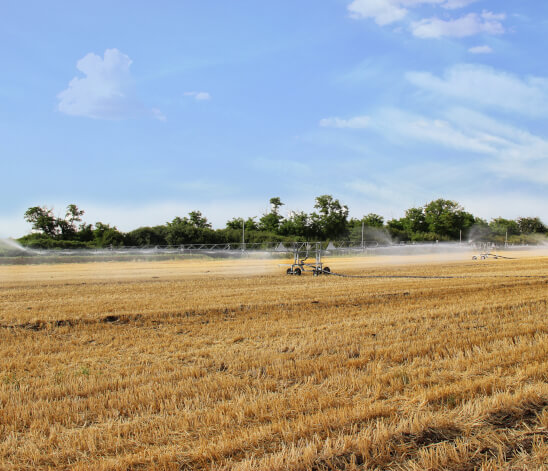

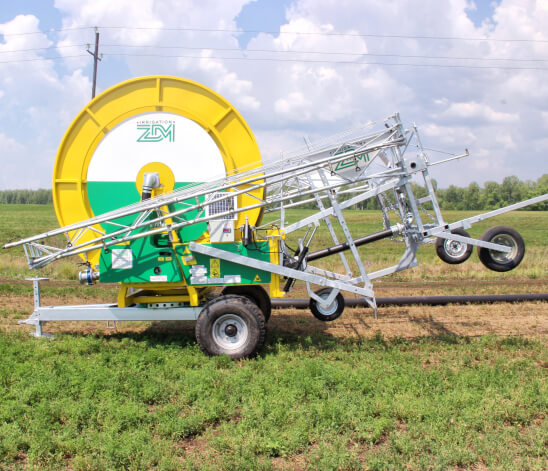

ZDM IRRIGATION MACHINES WITH BOOM
For gentle irrigation of small-seeded crops, the best option is a reel-type ZDM machine with a spray boom. Its fine and even water distribution is ideal for beets, potatoes, cabbage, onions, wheat, strawberries, low shrubs, alfalfa, and other crops requiring precision irrigation.
Equipped with either Russian-made or optional Nelson nozzles with pressure regulators. Low boom height minimizes evaporation and wind drift. ZDM booms fit any brand of reel irrigation machine, with both central and side connection options. Only 1–2 operators are needed.
- For irrigating small-seeded crops
- Guaranteed service life: 20+ years
- PE pipe diameter: 110 mm
- Boom movement speed: 5–150 m/h
- Inlet pressure from 4 atm
- Irrigation width: 52–98 m
Operating principle of ZDM irrigation machines
ZDM reel machines work with either long-range sprinklers or spray booms. Watch our videos showing real ZDM service installations and first irrigations.

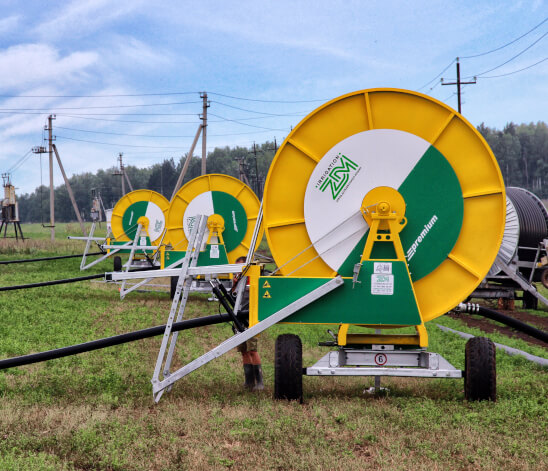

Design features
- Reinforced drum design reduces mechanical stress on PE pipe
- Gear-driven drum supports both sprinkler and boom options
- Italian monoblock gearbox
- Configuration tailored to your field, crop, and water source
Pipe length on the drum 300 m
PE pipe diameter 110 mm
Calculated machine load 25 ha
Machine weight 3630 kg Подробнее
Length of unwound PET 400 m
Irrigation area from one position 4.5 ha Estimated load per machine 28 ha Machine weight 4050 kgПодробнее
Length of unwound PET 500 m
Irrigation area from one position 5.5 ha Estimated load per machine 30 ha Machine weight 4380 kg
Подробнее
Length of unwound PET 530 m
Irrigation area from one position 5.8 ha Estimated load per machine 30 ha Machine weight 4380 kg
Подробнее
Length of unwound PET 300 m
Irrigation area from one position 3.5 ha Estimated load per machine 25 ha Machine weight 4380 kg
Подробнее
Length of unwound PET 400 m
Irrigation area from one position 4.5 ha Estimated load per machine 28 ha Machine weight 4050 kg
Подробнее
Length of unwound PET 500 m Irrigation area from one position 5.5 ha Estimated machine load 30 ha Machine weight 4380 kg
Подробнее
Length of unwound PET 530 m
Irrigation area from one position 8.8 ha Estimated machine load 30 ha Machine weight 4380 kgПодробнее
